Combine VECTOR 425

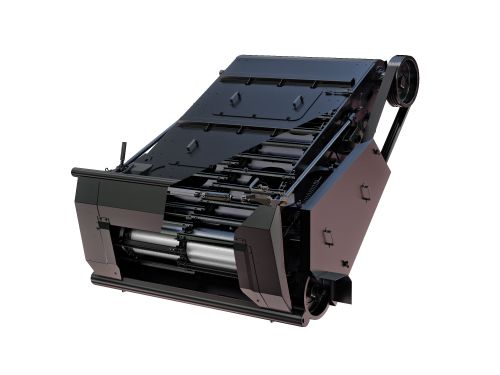

The new extended feeder house has several advantages: a better view of the cutting device, more simple operation for harvesting row crops due to the absence of the intake beater, and a possibility to work with wide angle adapters (for example, 8-row maize header).

Hydraulic multicoupler provides fast and easy header attach.

The grain tank transforming roof allows to increase its capacity from 4.5 up to 6m³, or reduce the combine dimensions, if required.

Due to pulsers, the combine easily unloads wet grain, what leads to increasing of shift efficiency.

VECTOR is equipped with Cummins QSB 6.7 (Stage IV) turbo-diesel engine, L6, displacement 6.7 L, 228 hp (168 kW at 2000 RPM). Operator can control engine RPM easily with button-type switch from the cabin control panel. Torque reserve is up to 20 %.

Assured forward moving

VECTOR is equipped with hydraulic-static transmission providing stage-free speed adjustment within any of 3 gears. The range of working gears allows to load the combine when working on low-crop fields. The combines versions with full drive and semi-caterpillar chassis guarantee assured and reliable operation in any conditions.

Power Stream header guarantees improved performance by reducing losses and optimal crop gain. This header proved in practice that due to its original cutterbar with a planetary drive minimizes shattering losses and ensures consistent uniform feeding whatever harvesting conditions may be. The reel hydraulic drive featuring a synchrodrive automatically adjusts the reel speed to match the ground speed.

The reaper hydraulic drive allows to adjust its rpm without gears providing optimal and uniform mass feeding for the high productivity purpose. It is easy and reliable mechanism with minimal adjustments

Reaper rpm and combine drive speed synchronization system makes easier the combine operator’s work, and reduces the requirements to his qualification. As the result, increased harvesting productivity and reduced losses. Connecting areas of the reaper beams and rake elements are reliably protected from winding of long-stem plants.

The large diameter worm prevents the winding of high-stem crops. Pins between the worm threads arranged along the coverage width promote the mass feeding even when harvesting peas and very low barley. There are grooves on the pins allowing their careful braking in case of getting the rocks.

Schumacher cutting apparatus operates smoothly, precisely and without wear. High cutting rpm and increased travel of knives increase the cut quality and, respectively, the harvesting productivity, especially in adverse conditions. The knives are attached with bolts, what considerably reduces the time of their replacement. In order to harvest the laid crops on uneven soils, the stem-lifters, which preliminary lift the stems from ground, are used to reduce the losses (included into basic set).

In order to harvest the corn seeds, the thresher re-equipment set and 6- or 8-row snapper is proposed. The device provides harvesting of seeds with simultaneous shredding and throwing of leaf-stem mass over the field.

The 8-row reaper especially designed for harvesting the sunflower shall provide the completeness crop harvesting at minimum rate of 98%, what is not achievable when using another type attachments. The reapers reliably operate in any agricultural conditions, including stunted sunflower hybrids.

In order to achieve maximum effectiveness when harvesting the easily-damaged cultures, the additional equipment is proposed. Rape attachment for reapers 6/7/9 m will reduce losses at harvesting by 3-4 times and additionally pick-up 30-100 kg of grain from 1 hectare of field, depending of crop capacity.

Losses when harvesting soya and other creeping cultures shall be dramatically reduced in case of using the reaper with flexible cutting apparatus able to copy the field micro-relief. The possibility of rigid knife fixing is foreseen in order to harvest traditional erect cultures.

In case of separate harvesting, the combines are equipped with pickup platforms having width 3.4 or 4.3 m. As the reaper, this device is able to copy the field relief in longitudinal and later directions. Reliable protection of pickup elements from clogging, winding and blowing-off the mass by wind provides its stable operation even in adverse conditions.

For the harvest sparse, undersized bread essential grain conveyor header Draper Stream 900 whith width of 900mm. When using it, the rate of harvesting is increased to 10-15 %, which allows to optimize the download of the thresher. Special wheels, performing the functions of copying field relief and support of the header, may also be moved the transport position, eliminating the need to use transport trucks.
